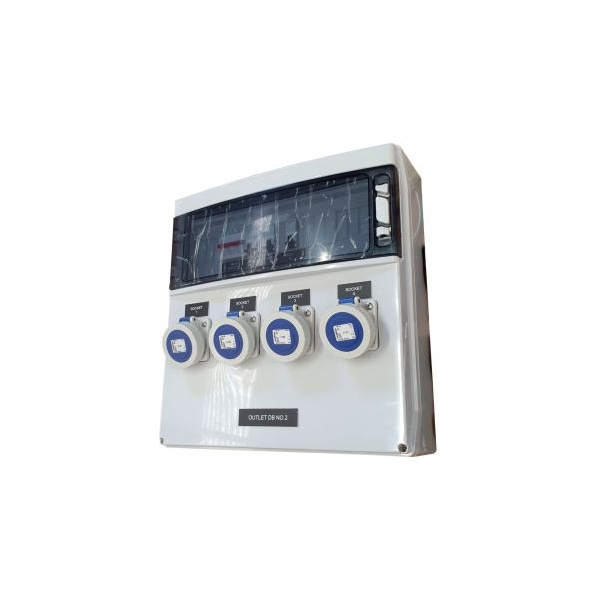

grey_csp12_box_with_x4_blue_16a_outlets_for_a_campground_distribution

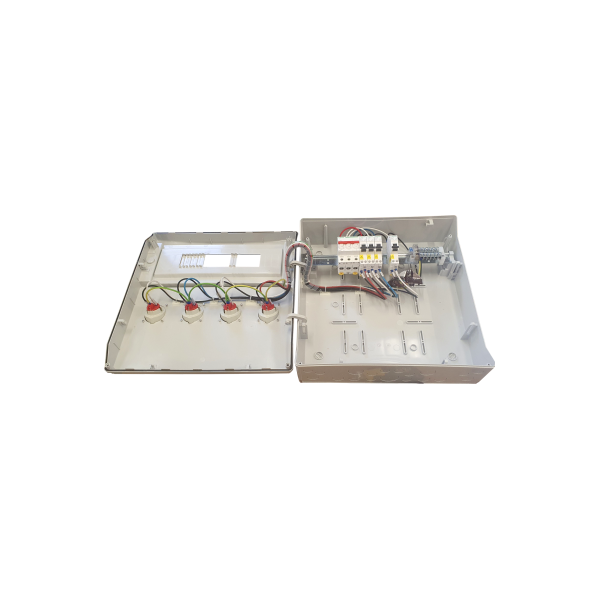

grey_csp12_box_with_x4_blue_16a_outlets_for_a_campground_distributiongrey_campground_switchboard_open_with_main_switch_and_wiriing

63A plug outlet board / ADA2-AP

Camping outlet board 63A,12Way.

Specifications:

  • Dimensions:  436 x 310 x 147mm (CSP12PT)
  • Main Switch size:  Schneider 63A load break, 12 Ways
  • Code: ADA2-AP
  • Range: Star
  • Base Materials: Polycarbonate
  • Cover Materials: Polycarbonate
  • Wall Fastening Possible: True
  • IP Rating: IP65
  • IK Rating : IK08
  • Chemical Resistance: True

This includes:

  • 1 x INS isolator Schneider 63A load break
  • 1 x CSP12PT
  • 4 x 16A plug outlets
  • 1 x E/N bar to suit

Options:

  • IP69 enclosure
  • Enclosure only
  • Room for larger cables
  • Lockable door
  • MCCB or fuse disconnect

For stp. dwg. and dxf. files, please click here.

For trade pricing and stock information, please go to the re-seller login.
