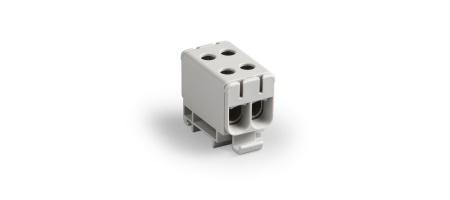

Clampo Pro Universal Terminals

The Ensto Clampo terminals are specially developed for the needs of the industry. Ensto offers a range that will better adapt to New Zealand. The terminals in question are suitable for both aluminium and copper conductors without the use of extra cable clamps. Fully enclosed, including everything needed for connecting wires, extending or branching cables and enclosing different components. We have had great success in wiring MCCBs out into cable ducts to speed up switchboard changeovers using a series of Clampo Pro Terminals.

  • Suitable for both Al and Cu conductors
  • Din or gear tray mount options.
  • Great for transitioning 95mm Ali incomers to 16mm Copper cables.
  • Oxidation inhibiting compound applied at the factory.
  • One screw termination.

Certifications:

  • Connector class: A
  • Standards: UL 1059,EN 60947-7-1,EN 61238-1
  • UL category: XCFR2
  • UL File no.: E192532,E192532
  • Clampo Pro product video

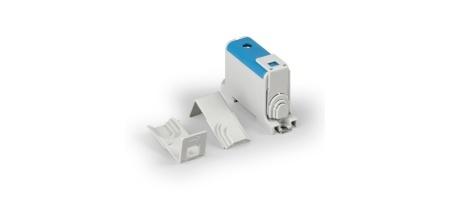

Clampo Terminal Connectors

Cable connectors for wiring larger cables into MCBs (up to 50mm)

  • Cu 2,5-50, Al 6-50
  • Standards:  IEC 61545,EN 60947-7-1
  • Nominal Current:  Cu 160A, Al 145A
  • >> Click Here <<



stp. dwg. and dxf. files are available. Please copy the product code into www.ensto.com and navigate to the downloads tab.
