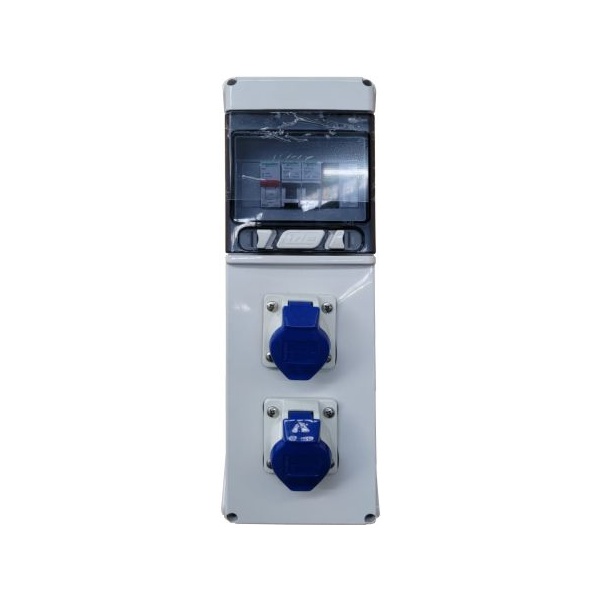

csp6pt_box_with_breakers_and_two_5_pin_outlets_on_the_front

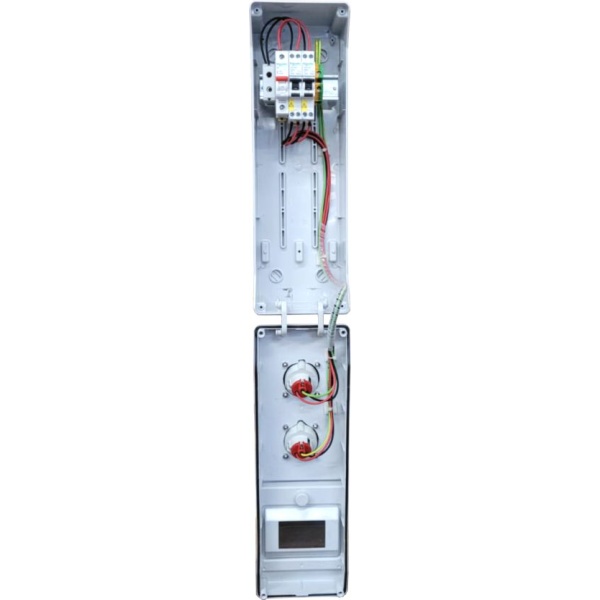

csp6pt_box_with_breakers_and_two_5_pin_outlets_on_the_frontcsp6pt_box_open_showing_the_internal_breakers_and_plugs

63A Caravan Plug / ADA2-63ST


This is CSP6PT enclosure is the perfect fit to house a main switch, RCBO’s and two Panel Mount 16A 3P caravan outlets plus, all the room needed for wiring and a lockable controls window.

Specifications:

  • Dimensions:  436 x 142 x 137mm
  • Main Switch size:  63A
  • Code: ADA2-63ST
  • Range: Star
  • Base Materials: Polycarbonate
  • Cover Materials: Polycarbonate
  • Wall Fastening Possible: True
  • IP Rating: IP65
  • IK Rating: IK08
  • Chemical Resistance: True

This includes:

  • 1 x 63A main switch
  • 1 x CSP6PT (IDE enclosure)
  • 2 x 16A RCBOs for Caravan outlets
  • 2 x Panel Mount 16A 3P Caravan Outlets
  • 1 x e/n bar to suit

Options:

Terminals for neutral and earth are provided.

Copper cable up to 35mm2 with 16mm2 Earth, can direct wire into terminals.
