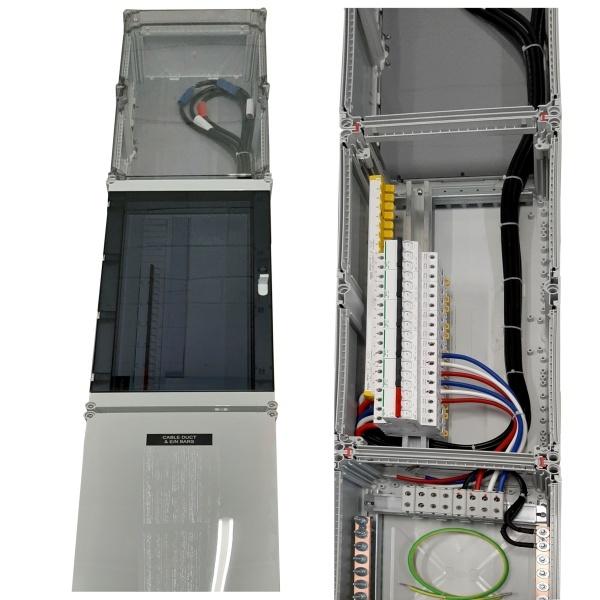

100A Meter and Distribution cabinet.

This switchboard has a combination of 300 x 600 x 185mm switchboards that can be joined vertically or horizontally and can be joined in any order.

The distribution is 8TP (or 24 single ways) comb bar. Cable duct has AL/Cu terminals and an earth neutral bar to suit. Meter cabinet has a 4mm PVC gear tray for 3ph meters.

Specifications:

• Dimensions:  1800 x 300 x 185mm
• Main Switch size:  Schneider 100A Main switch
• Distribution: 8TP Comb bar
• Code: ADA3-100AMD
• Range: Cubo P
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True
• IP Rating: IP66
• IK Rating : IK08
• Chemical Resistance: True

This includes:

• 1 x  Distribution cabinet: 100A Main switch & Comb Bar
• 1 x Meter Cabinet : PVC gear tray
• 1 x Cable duct & E/N bars : AL/Cu Terminals & E/N bar
• All cabinets include an extension frame

Options:

• Wiring
• Multiclip Distribution - if you need MCBs and RCBOs together
• MCBs
• Mounting Feet
• Cable Strain Relief
