The Electric Post

August 2025

CUBO P Panel Building System

What it really is, is a modular clip and pin system used to construct an outdoor switchboard, in whatever configuration required, to keep the switchgear out of the weather in an IP67 & IK08 enclosure.

This has proven to be a faster, more customisable way for us to build IP rated switchboards that are competitive with stainless or other non-metallic outdoor switchboards. Cubo P has come together for us to build MSBs with changeover switches, outlet boards, and residential switchboards.

Need a meter & distribution board with extra cable duct? - Cubo P
Need an outdoor MSB with 24ways and controls panel? - Cubo P
Need an outdoor fuel pump board with panel indicators? - Cubo P
Need distribution & smart meter in color-matched enclosure? - Hold my beer
I think you get the idea.

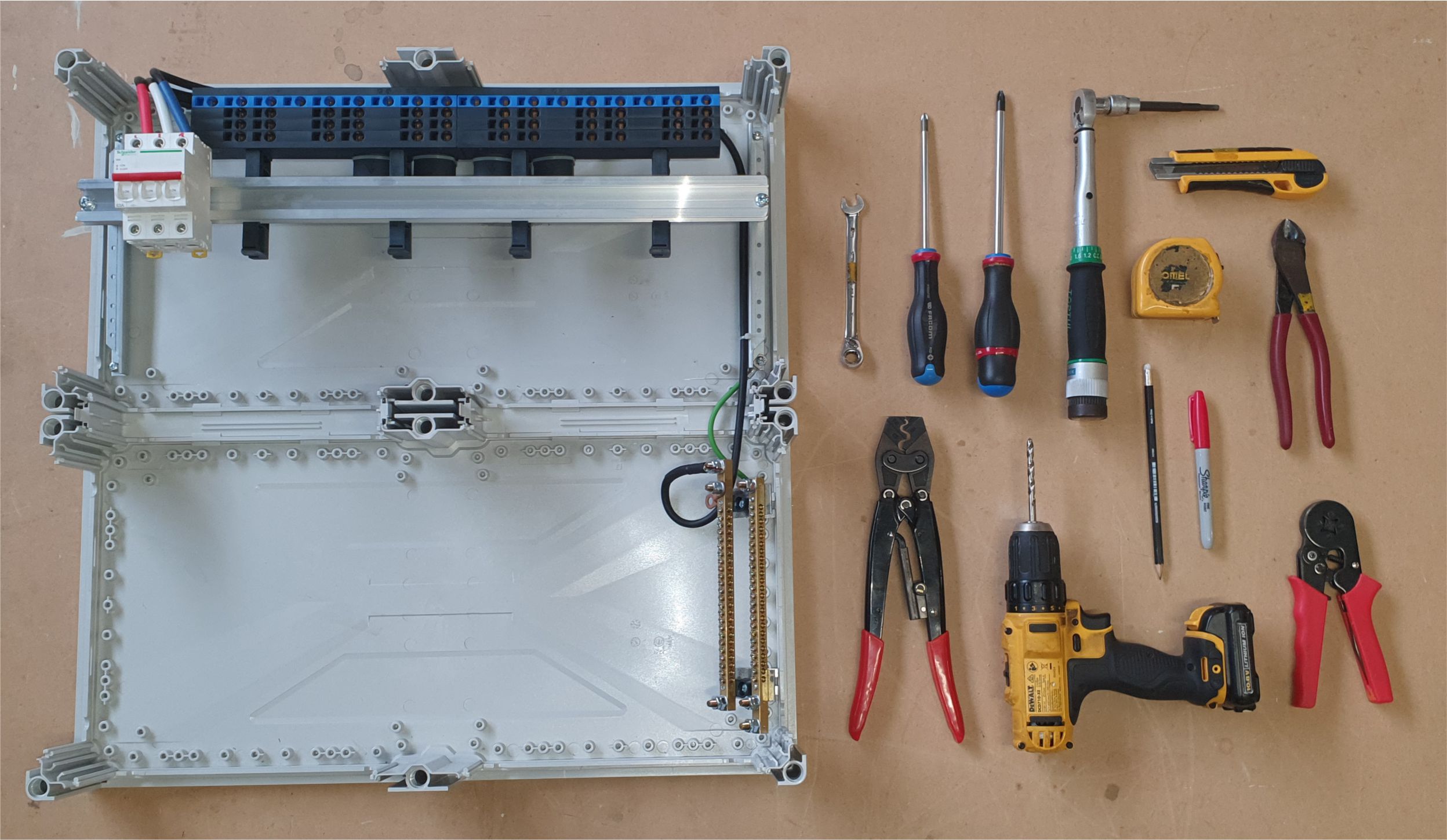

Some say it's like Meccano or LEGO to construct; however, if you managed a Duplo block complex back in the day, you should be able to come up with your own Cubo P construction.

  • IP67 / IK08
  • All non-metallic parts are polycarbonate
  • Base is fiberglass-reinforced polycarbonate
Basic Building Components for a Cubo P Enclosure:

Cubo P Base:

  • 100mm high
  • Open on all sides
  • 300W or 400W gaps
  • Join bases together with connecting collar kit
Connecting Collar & Pins:
  • PCSC3 / PCSD4
  • For 300W or 400W gap
  • Connects & locks bases together
 Cover Plate:
  • PCP3 / PCP4
  • For 300W or 400W gap
  • Closes in Cubo P bases

Read more about the system here:

Here are a few we prepared earlier:

Do some of these look familiar, or think you have seen them before. That's because you have. We have used this system for over 7 years, and it has featured as the enclosure range numerous times in our emails and casestudies.

CS-SPMD

Meter, Distribution & MOG board
  • 600H x 1200W x 185D
  • Room for 3 meters, plus ripple relay
  • 100A main switch
  • Two 63A 3P/3P MOG switches
  • Cable duct & E/N bars
  • 21 ways, split between two comb bars.

View CS-SPMD



CS-63FB



Farm Controls Switchboard
  • 800H x 900W x 185D
  • 63A Main switch
  • 12 way comb bar with tails to meter cabinet
  • Gear tray for UPS, water softener & controls

View CS-63FB



ADA6-UCB

8TP (24way), 100A Changeover Switchboard.
  • 900H x 900W x 185D
  • 100A 3P/3P or 3P/4P MOG
  • 8TP Multiclip distribution
  • Room for metering
  • Cable duct & E/N bars.

ADA6-UCB



While we don't expect sparkies to build and fit out these switchboards yourselves, we did think we should let you in on how this range comes together, and how the enclosure system can be built to order. However, we do stock all the parts needed to put one together, should you feel the need to call on your LEGO expertise.
