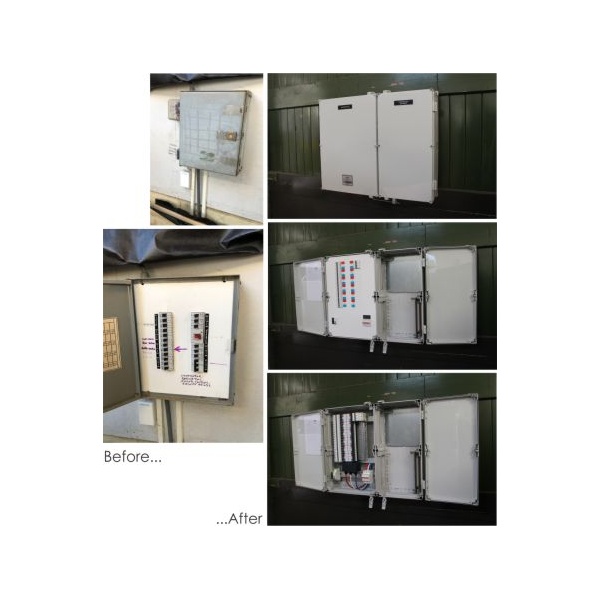

external of a grey polycarbonate box mounted on a green display wall.before_and_after_images_of_a_small_messy_switchboard_to_a_new_bigger_one

12TP Distribution and Controls / ADA2-12TP

12TP Distribution and Controls

Because Cubo P is a joinable panel system, it can be easily expanded in the future by adding on a new distribution enclosure if need be. And, by combining and upgrading the existing Gael switchboard and controls panel into one switchboard, this new switchboard is more efficient, safe and future proof.

Specifications:

  • Dimensions:  800 x 600 x 185mm
  • Main Switch size:  Schneider 63A lsolator
  • Code: ADA2-12TP
  • Range: Cubo P
  • Base Materials: Polycarbonate
  • Cover Materials: Polycarbonate
  • Wall Fastening Possible: True
  • IP Rating: IP66
  • IK Rating : IK08
  • Chemical Resistance: True

This includes:

  • 63A Isolator
  • 12TP PAN assembly
  • Steel gear tray for controls
  • Optional MCBs

Options:

  • Multiclip distribution for when both MCBs and RCBOs are needed
  • PVC or Typanel gear tray

Watch a video here to show how we built this board.



For trade pricing and stock information, please go to the re-seller login.
