Single-phase MCBs with surge diverter and control devices. Housed in a tamper-proof IDE enclosure.

Specifications:

• Dimensions:  246 x 310 x 148mm (CDP12PT)
• Code: ADA5-36EC
• Range: Ecology
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True
• IP Rating: IP66
• IK Rating : IK08
• Chemical Resistance: True

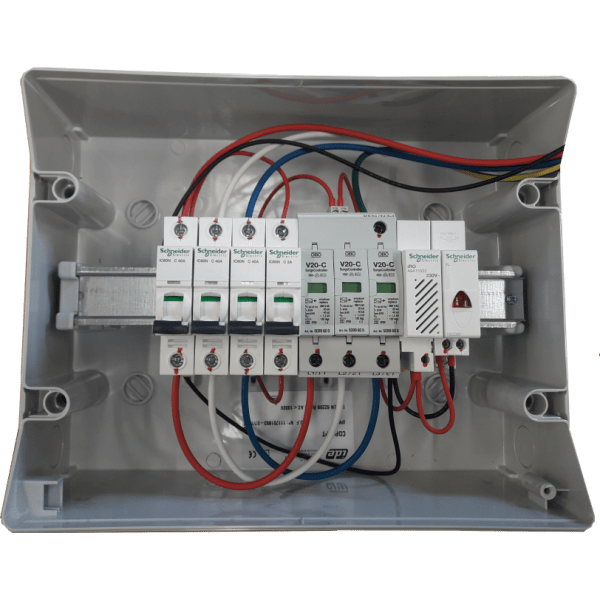

This includes:

• 4 x Single phase C60 MCBs
• Control Wiring
• Red Indicator light
• 3 pole with switch surge diverter
• Buzzer

Options:

• Room for larger surge diverters
• Lockable door
• Mounting Feet

For stp. dwg. and dxf. files, please click here.

For trade pricing and stock information, please go to the re-seller login.
