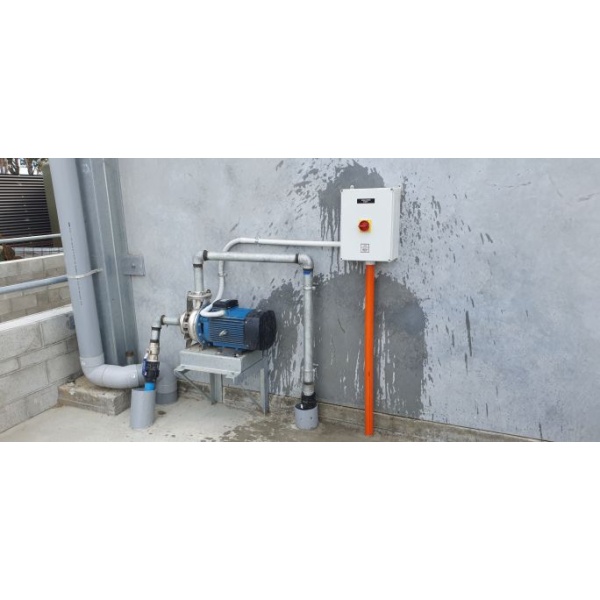

Cubo O Pump Control enclosure with a lockable isolator, softstarter, and terminals for a remote stop-start station. There was only a three-phase aluminium cable with no neutral running to the pump so we provided a 400/230V transformer and Al/Cu terminals to reduce the enclosure size and prevent the need to run a neutral or tail down the supply cable.
Specifications:
- Dimensions: 300 x 400 x 185mm (OPCP304010B- base code)
- Code: ADA5-32O
- Range: Cubo O
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP67
- IK Rating: IK08
- Chemical Resistance: True
This includes:
- Spring cage and fuse terminals
- Control Wiring
- Vario Isolator
- 63VA transformer
- Softstarter
- OPCP304006E - extension frame
- OMP3040 - mounting plate
Options:
- Pump timer control
- Padlockable door
- PolyBox enclosure
- Soft starters up to 18 1/2 KW
- Direct online starters
- Pump and stirrer timers
- Time clocks
- 400-230V transformers where there is no neutral
- Surge protection
- Socket outlets on the side
- Smart relay controls
