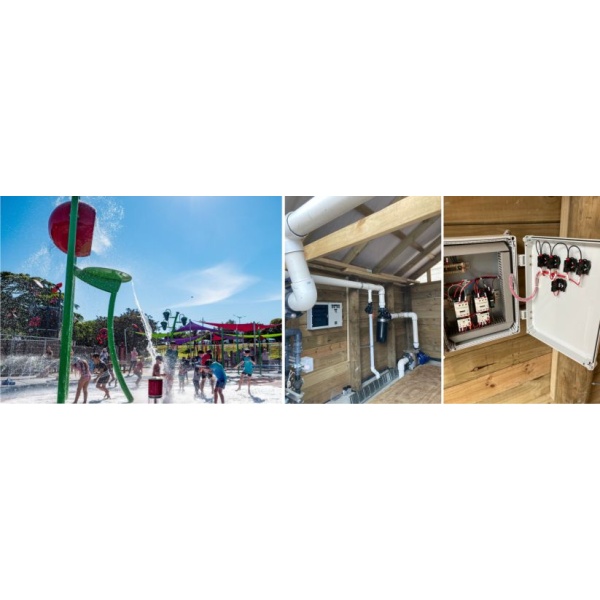

memorial_water_pad_collage_with_deulge_bucket_inside_a_wood_pump_shed_with_pump_switchboard_mounted_on_the_wall

Water Play Pump / ADA5-63MP

Water Play Pump Switchboard

Installed: December 2021

Location: Palmerston North

The whole pump system works using a reticulated water supply. Draining the water from the pad, chlorinating it then squirting it back out again.
This was a neat little project to be a part of, and shows the versatility of our Cubo P system. With the clip together modules, we were able to provide a chemical resistant, IP65, switchboard with plenty of room for equipment and cabling.

Specifications:

  • Dimensions:  600 x 400 x 132mm
  • Code: ADA5-63MP
  • Range: Cubo P
  • Base Materials: Polycarbonate
  • Cover Materials: Polycarbonate
  • Wall Fastening Possible: True
  • IP Rating: IP66
  • IK Rating : IK08
  • Chemical Resistance: True

This includes:

  • 1 x 4 kw three phase Waterplay Pump
  • 1 x 1.8 kw single phase circulation pump (runs 24/7)
  • 1 x three pin plug for chemical treatment (no interlock required)
  • 3 x three domestic plug outlets
  • 1 x plantroom lighting outlet

Each site has unique needs and specifications, so please contact us for a discussion around your requirements and one of the team will be able to guide you through the whole system.
