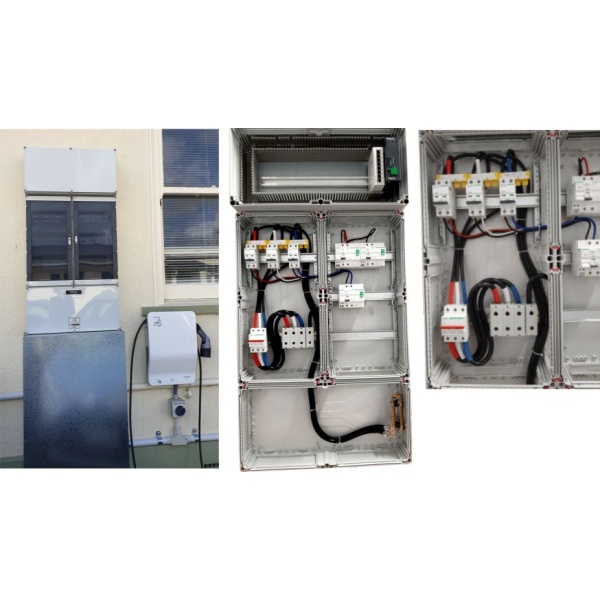

This solution was designed for a public organization with a fleet of six electric vehicles that will increase to 12 by 2023. The top control panel is 55mm deeper than the distribution panel to accommodate the deeper Magelis EV controller.

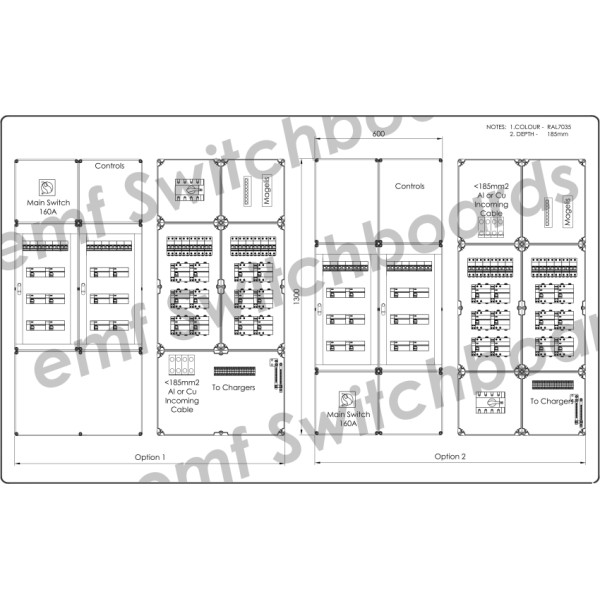

In order to serve 12 single-way EV charger distribution systems, Emf switchboards has designed two Cubo P switchboard options using Al/Cu terminals for the incomers and uses comb bar distribution. Attached are the most common EV charging designs that we are asked about. For more information or site-specific requirements, please contact us as there are a number of options and variations for EV charging.
Specifications:
- Dimensions: 1200 x 600 x 132mm (controls depth:185mm)
- Code: ADA8-EVP
- Range: Cubo P
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP67
- IK Rating: IK08
- Chemical Resistance: True
This includes:
- 100A 3p Isolator
- 3 phase, 6 charger DB with B-type RCD Protection.
- Terminal block for up to 120mm2 Al/Cu incomer
Options:
- Lockable door (this was in a gated carpark)
- Single or three-phase for slow, medium or fast charging units.
For campground or outdoor distribution boards, Please click here.
