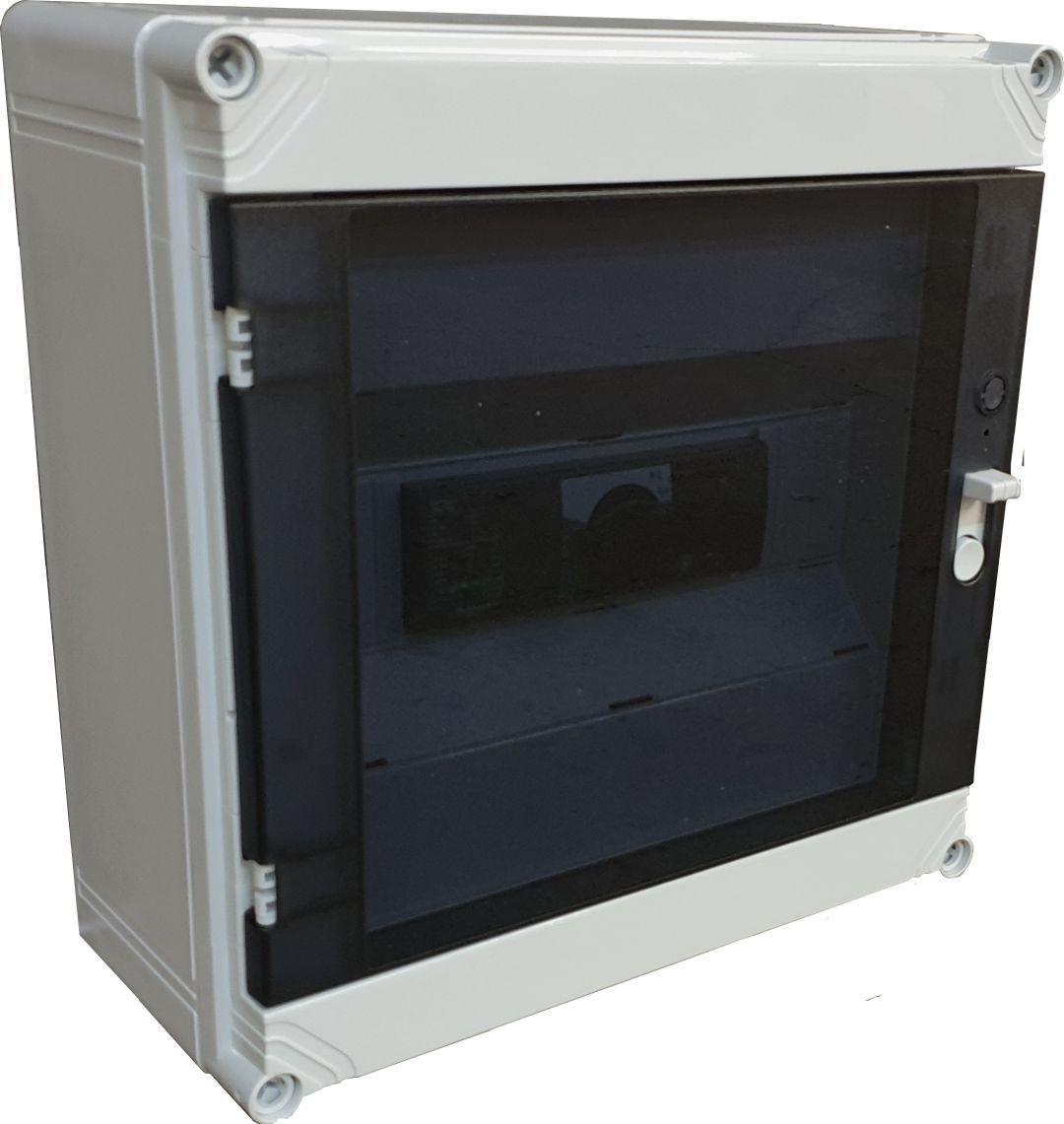

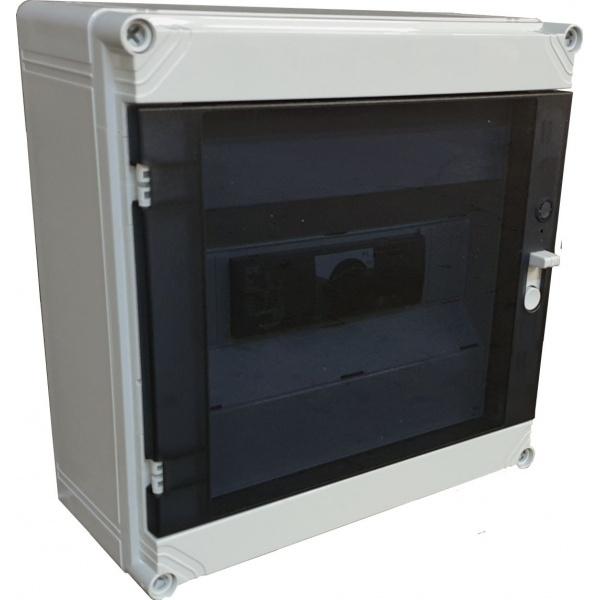

63A Isolator mounted in a IP65 polycarbonate enclosure. Lug connection for phases and screw terminal for earth/neutral bar.
Specifications:
- Dimensions: 300 x 300 x 130mm
- Main Switch size: Schneider 100A load break
- Code: ADA1-100O
- Range: Cubo O
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP66
- IK Rating : IK08
- Chemical Resistance: True

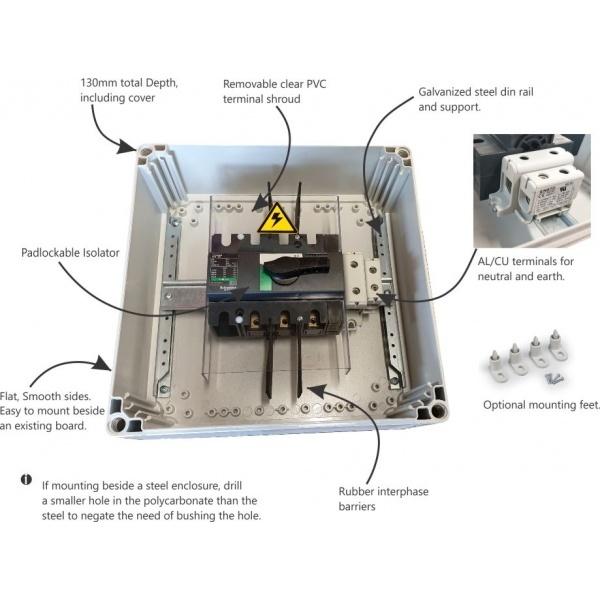

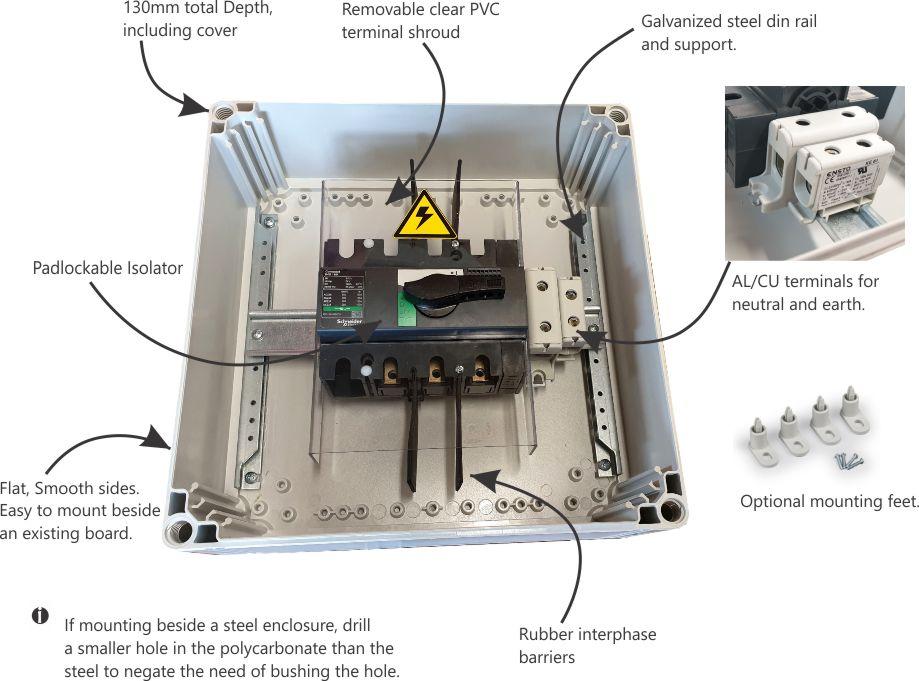

This includes:
- 1 x INS isolator Schneider 100A load break
- 1 x OPCP303010B (Cubo O base)
- 1 x OPCG33.125.1DS
- 1 x KE61 terminal
- 1 x KE62 terminal
- 1 x interphase barriers
- 1 x clear PVC shroud
Options:
- IP69 enclosure
- Enclosure only
- Room for larger cables
- Lockable door
- MCCB or fuse disconnect
- Mounting Feet
For stp. dwg. and dxf. files, please click here.
