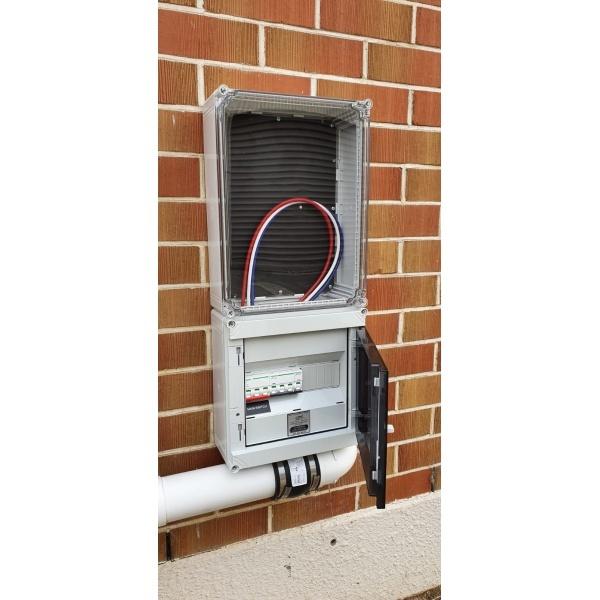

combined meter and distribution box on a brick wall outside with conduit for incomers
combined meter and distribution box on a brick wall outside with conduit for incomersmeterpanel

12 Way Meterboard / ADA3-12WP

12 Way, 63A Meter board built by using Cubo P panel building system. Transparent fixed cover for meter and hinging lockable window for distribution.

Specifications:

  • Dimensions: 700 x 300 x 132mm - fits single phase meter
  • Dimensions: 700 x 300 x 185mm - fits 3 phase meter
  • Main Switch size:  Schneider 63A load break
  • Code: ADA3-12WP
  • Range: Cubo P
  • Base Materials: Polycarbonate
  • Cover Materials: Polycarbonate
  • Wall Fastening Possible: True
  • IP Rating: IP66
  • IK Rating : IK08
  • Chemical Resistance: True

This includes:

  • 1 x INS isolator Schneider 100A load break
  • 1 x 12way DIN rail
  • Tails from main switch to meter
  • 1 x PPCF303010B4
  • 1 x PPCF304010B4
  • 1 x PCSC3
  • 6 x PCP3
  • 2 x PCP4
  • 1 x OPCG.33.125.1DS
  • 1 x OPCT304003L
  • E/N bar to suit
  • Comb Bar distribution

Options:

  • IP69 enclosure
  • Enclosure only (gear tray, E/N bar and din rail)
  • Room for larger cables
  • Lockable door
  • MCCB or fuse disconnect

For stp. dwg. and dxf. files, please click here.

For trade pricing and stock information, please go to the re-seller login.
