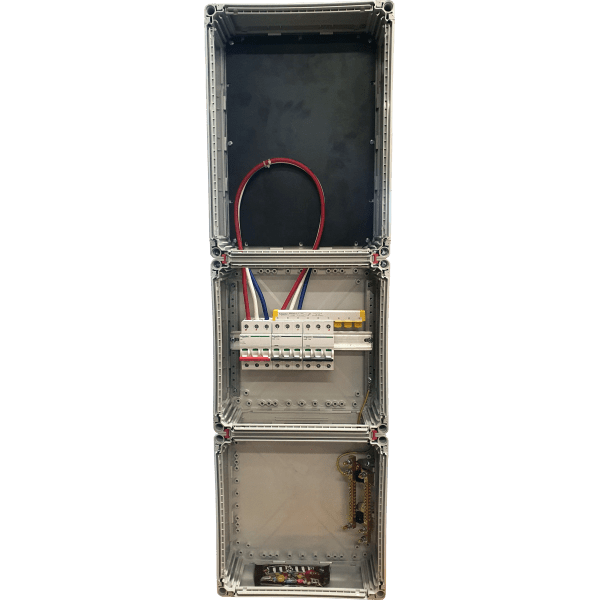

12 Way, 63A Meterboard with cable duct. Built using Cubo P panel building system.
Specifications:
- Dimensions: 1000 x 300 x 185mm
- Main Switch size: Schneider 63A load break, 12 Ways
- Code: ADA3-12MP
- Range: Cubo P
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP66
- IK Rating : IK08
- Chemical Resistance: True
This includes:
- 1 x INS isolator Schneider 63A load break
- 2 x PPCF303010B4
- 1 x PPCF304010B4
- 1 x Three phase 12 way Comb bar
- 1 x 12 way E/N bar set
- 1 x Breather Device
Options:
- IP69 enclosure
- Enclosure only
- Lockable door
- MCCB or fuse disconnect
For stp. dwg. and dxf. files, please click here.
