Combination Meter and distribution enclosure 63A, 12way.

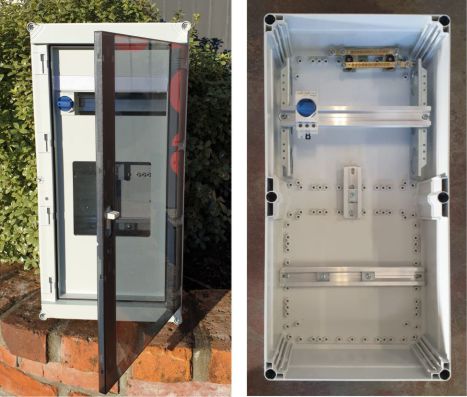

An easy-to-wire, compact panel with a smoke-tinted door and room to sleeve down cables. Meter can be installed top or bottom.

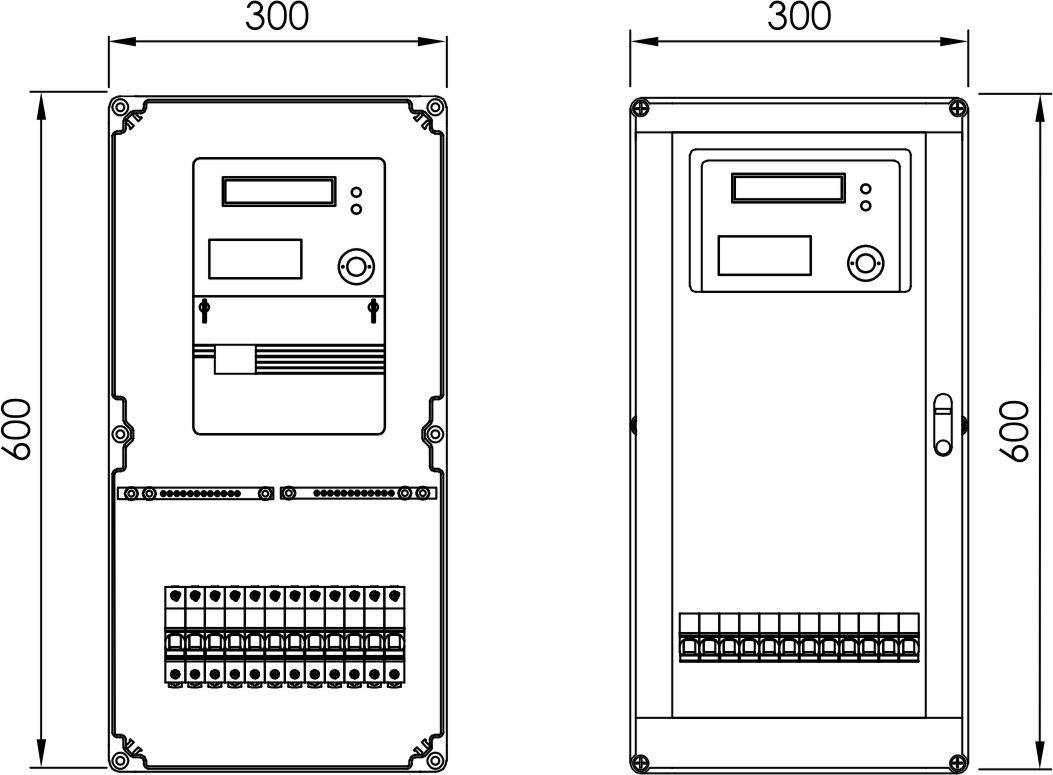

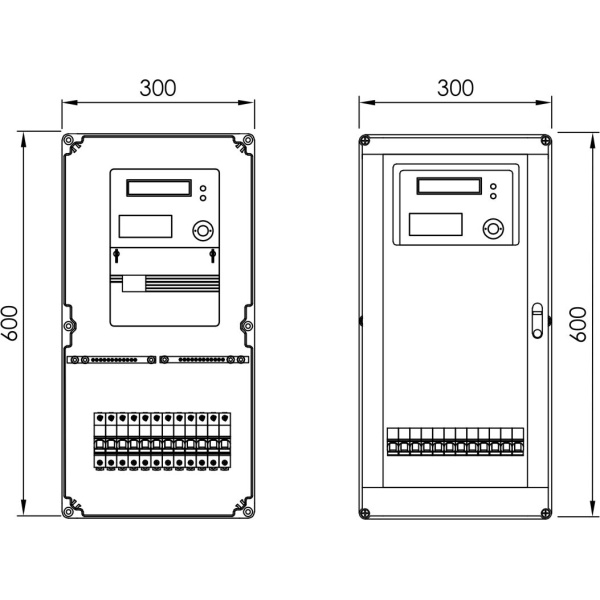

• Dimensions: 300 x 600 x 185mm - fits 3 phase meter
• Dimensions: 300 x 600 x 132mm - fits 1 phase meter
• Main Switch size:  63A Isolator, 12 way Din rail
• Code: ADA5-63CM
• Range: Cubo P
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True
• IP Rating: IP66
• IK Rating : IK08
• Chemical Resistance: True

4mm typanel gear tray for meter
E/N bar to suit
1 or 3 phase

Enclosure on its own: OPCP306018CS

 Click here to see another option with room for 3 phase meter and 12 way distribution.
