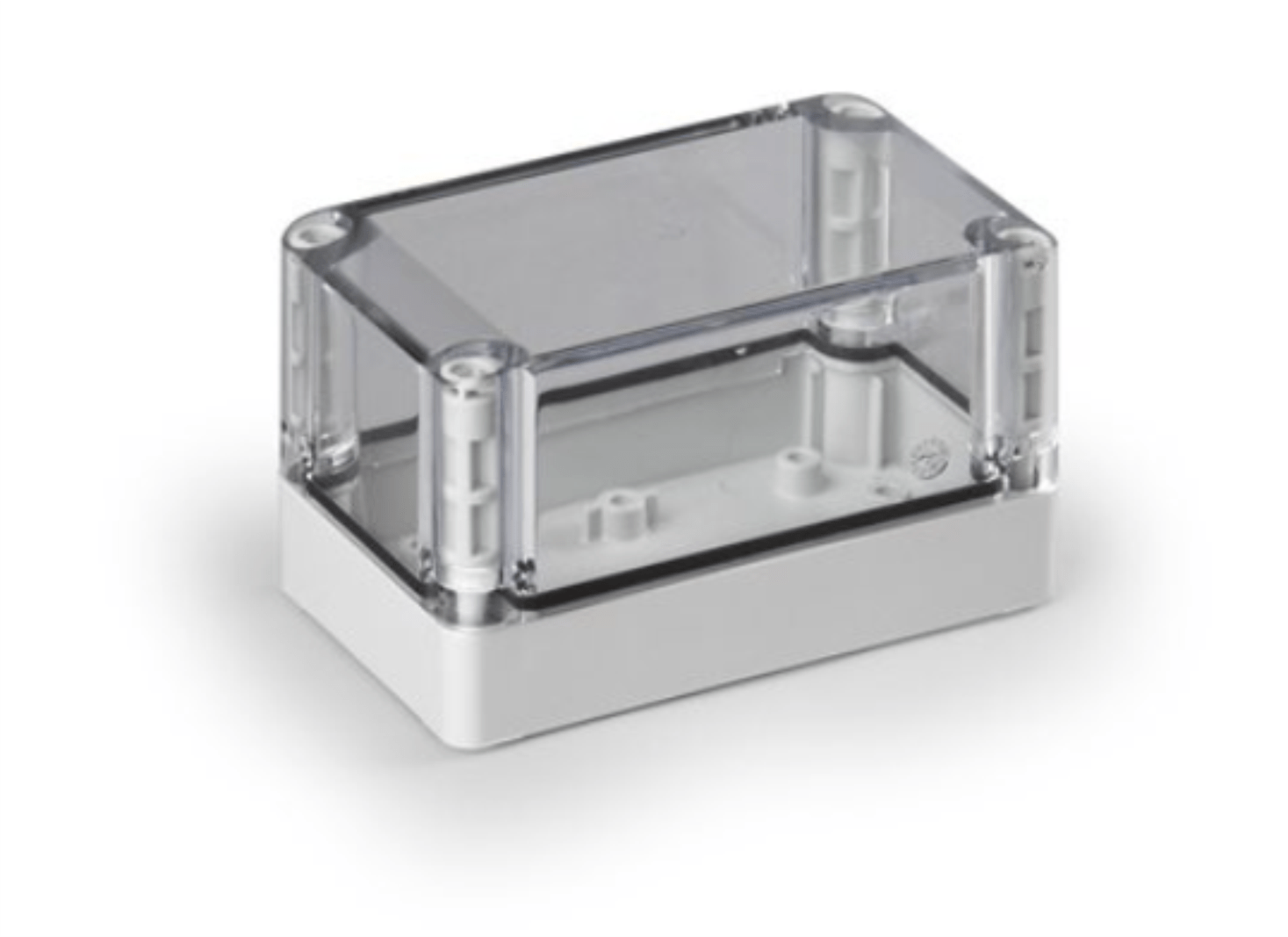

SPCP081308LG / SPCP081308LT


Content: Enclosure base, cover, cover screws, gear tray, or dinrail mounting screws

Ensto Cubo S is a series of small to medium size enclosures with plain sides. The base of the enclosures is equipped with unique slots for printed circuit boards,  mounting towers for dinrail, and mounting plates.

Specifications

  • Dimensions: 75 x 125 x 75mm mm
  • Base Depth: 25 mm
  • Code: SPCP081308LG - Grey Lid , SPCP081308LT- Transparent Lid
  • Base Materials: Polycarbonate
  • Cover Materials: Polycarbonate
  • Wall Fastening Possible: True
  • IP Rating: IP66
  • IK Rating : IK08
  • Chemical Resistance: True

Temperatures

  • Flammability Rating: UL 746C 5 inch flame test
  • Operating Temperature: -40 ... +80 °C
  • Short Term Temperature Range: -40 ... +120 °
  • Standards Tested To: EN 62208, UL 508A

For stp. dwg. and dxf. files, please click here.

For trade pricing and stock information, please go to the re-seller login.
