Content: Enclosure base, cover, cover screws, gear tray, or dinrail mounting screws

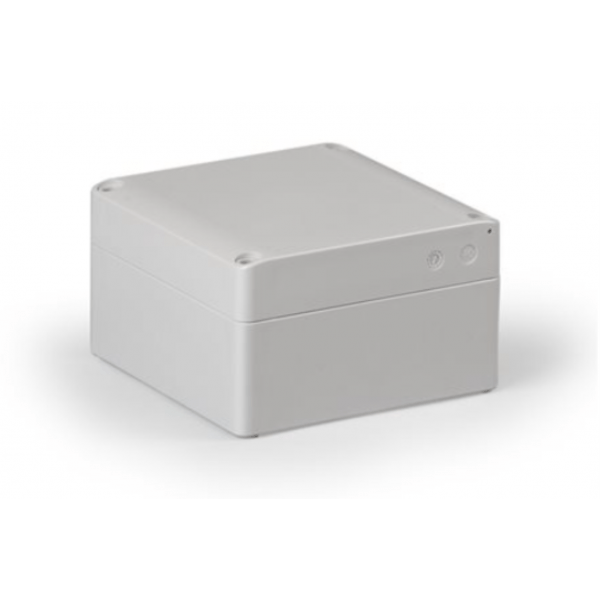

Ensto Cubo S is a series of small to medium size enclosures with plain sides. The base of the enclosures is equipped with unique slots for printed circuit boards,  mounting towers for dinrail and mounting plates.

Specifications

• Dimensions: 125 x 125 x 75 mm
• Base Depth: 50mm
• Code: SPCP131308G - Grey Lid , SPCP131308T- Transparent Lid
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True
• IP Rating: IP66
• IK Rating : IK08
• Chemical Resistance: True

Temperatures

• Flammability Rating: UL 746C 5 inch flame test
• Operating Temperature: -40 ... +80 °C
• Short Term Temperature Range: -40 ... +120 °
• Standards Tested To: EN 62208, UL 508A
